Cambrai - S8782-1
Cambrai - S8782-1
BUNDLE_S8782-1

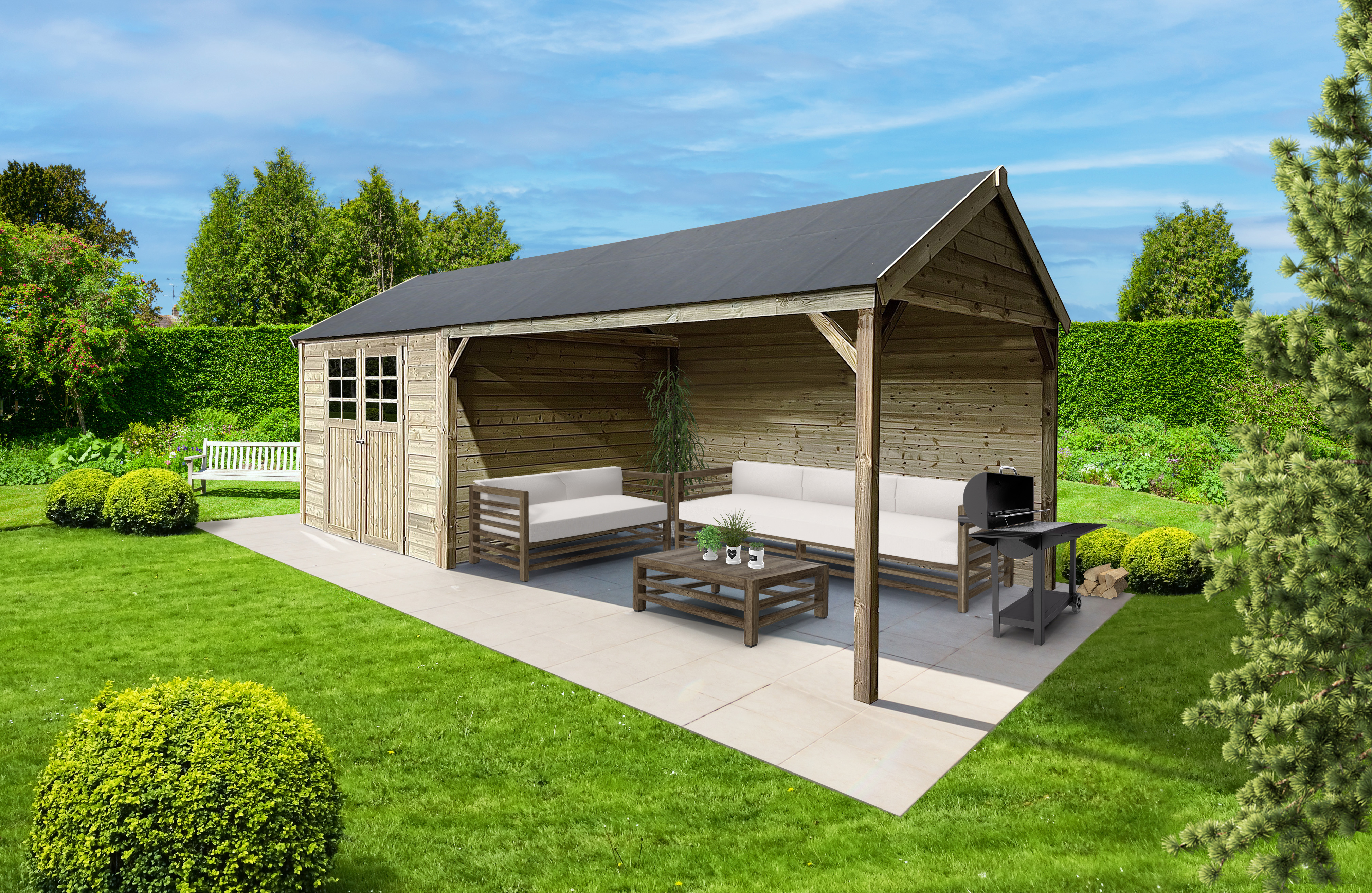

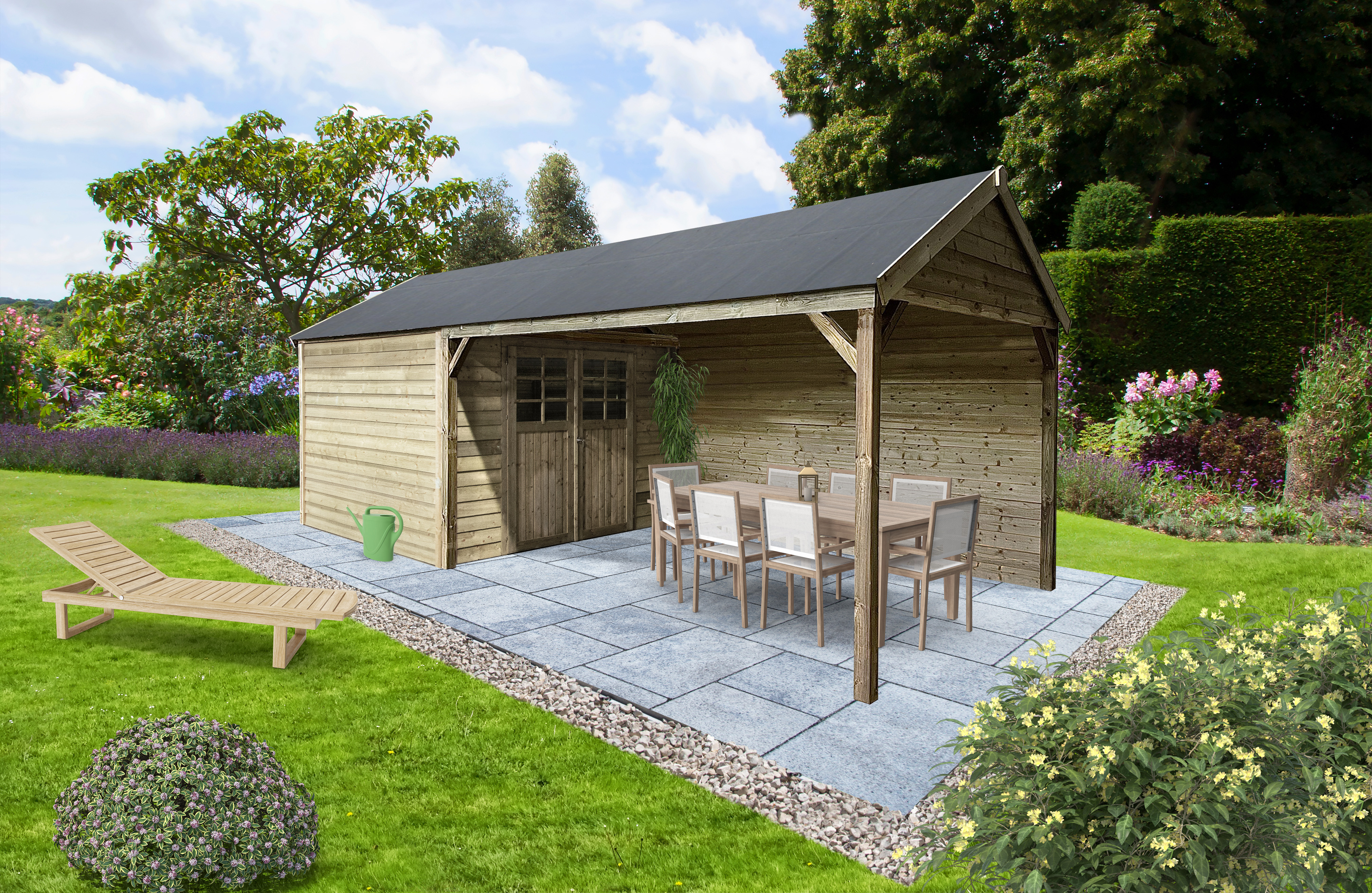

Traditional garden shed with terrace canopy made of certified and treated northern European pine class III.
Dimensions: 2936 + 3944 x 2936 mm.
Wall thickness: 19 mm.
Roof form: gable roof.
Included: double door with hardened glass and d
19 mm
Thickness
8.07 m²
Interior ground surface
Are you a distributor? Sign up for prices
Available downloads
GARDEN SHED 19/MM/SAT 2960+3960x2960/DHDTH/RO AUTOCLAVE
Properties of Cambrai - S8782-1
Interior ground surface
8.07 m²
Exterior ground surface
8,62 m²
Exterior ground surface with overhang
22,36 m² (max)
Surface to paint
+/- 45 m²
Permanent load
30 kg/m²
Snow load
75 kg/m²
Thickness
19 mm
Width
2936 + 3948 max
Depth
2936
Door
Double hinged door
Door material
Single safety glass
Building system
Mount & match
Sub-roof
Wooden profiles 16 mm
Impregnated
Yes
Colour of impregnation
Green
Roof type
Sattle
Warranty
2 years
Roof area
24,62 m² (max)
Gradient
28°
